How do I balance the cells in a camping lithium battery?

Balancing the cells in a camping lithium battery is a crucial aspect that directly impacts the battery's performance, lifespan, and safety. As a camping lithium battery supplier, I've encountered numerous questions and challenges regarding cell balancing. In this blog, I'll share my insights and experiences on how to effectively balance the cells in a camping lithium battery.

Understanding the Importance of Cell Balancing

Before delving into the methods of cell balancing, it's essential to understand why it's so important. Lithium batteries are typically made up of multiple cells connected in series or parallel. Each cell has its own unique characteristics, such as capacity, internal resistance, and self - discharge rate. Over time, these differences can cause the cells to charge and discharge at different rates.

If the cells are not balanced, some cells may become over - charged while others remain under - charged. Over - charging can lead to thermal runaway, a dangerous condition where the battery can overheat, catch fire, or even explode. On the other hand, under - charged cells reduce the overall capacity of the battery, shortening its runtime and lifespan. Therefore, cell balancing is necessary to ensure that all cells in the battery pack are charged and discharged evenly, maximizing the battery's performance and safety.

Types of Cell Balancing

There are two main types of cell balancing: passive balancing and active balancing.

Passive Balancing

Passive balancing is the most common and cost - effective method. It works by dissipating excess energy from the fully charged cells through resistors. When a cell reaches its maximum charge voltage, the balancing circuit connects a resistor across the cell, allowing the excess charge to be converted into heat and dissipated. This process continues until all cells in the battery pack reach the same voltage level.

One of the advantages of passive balancing is its simplicity and low cost. It doesn't require complex circuitry or additional components, making it suitable for small - scale and low - cost battery applications, such as camping lithium batteries. However, passive balancing also has some limitations. Since it dissipates excess energy as heat, it can be inefficient, especially when there is a large difference in cell voltages. Additionally, the heat generated during the balancing process can increase the temperature of the battery, which may affect its performance and lifespan.

Active Balancing

Active balancing, on the other hand, transfers energy from the fully charged cells to the under - charged cells. This is achieved using more complex circuitry, such as DC - DC converters or inductors. Active balancing is more efficient than passive balancing because it doesn't waste energy as heat. Instead, it redistributes the energy within the battery pack, ensuring that all cells are charged evenly.

Active balancing is particularly useful for large - scale battery applications where the cost of energy loss is significant. However, it is also more expensive and complex to implement than passive balancing. The additional components and circuitry increase the cost and size of the battery management system, making it less suitable for small - scale applications like camping lithium batteries.

Implementing Cell Balancing in Camping Lithium Batteries

As a camping lithium battery supplier, I recommend using a battery management system (BMS) that incorporates cell balancing functionality. A BMS is an electronic device that monitors and controls the charging and discharging of the battery pack. It ensures that the battery operates within safe limits and balances the cells to maintain optimal performance.

When selecting a BMS for a camping lithium battery, there are several factors to consider:

Balancing Method

As mentioned earlier, there are two main types of cell balancing: passive and active. For camping lithium batteries, passive balancing is usually sufficient due to its simplicity and low cost. However, if you require a higher level of efficiency or have a large battery pack, active balancing may be a better option.

Balancing Threshold

The balancing threshold is the voltage difference between the cells at which the balancing process starts. A lower balancing threshold ensures more accurate cell balancing but may also increase the frequency of the balancing process, which can affect the battery's efficiency. A higher balancing threshold, on the other hand, reduces the frequency of the balancing process but may result in less accurate cell balancing. It's important to choose a balancing threshold that strikes a balance between accuracy and efficiency.

Safety Features

In addition to cell balancing, a good BMS should also include other safety features, such as over - charge protection, over - discharge protection, and short - circuit protection. These features help to prevent damage to the battery and ensure its safe operation.

Maintaining Cell Balancing Over Time

Cell balancing is not a one - time process. It needs to be maintained over the lifespan of the battery to ensure optimal performance. Here are some tips on how to maintain cell balancing in a camping lithium battery:

Regular Charging and Discharging

Regularly charging and discharging the battery helps to keep the cells balanced. Avoid leaving the battery in a fully charged or fully discharged state for an extended period of time, as this can cause the cells to become unbalanced. Instead, try to keep the battery's state of charge between 20% and 80%.

Temperature Management

Temperature can have a significant impact on cell balancing. High temperatures can increase the self - discharge rate of the cells, causing them to become unbalanced. Therefore, it's important to store and use the battery in a cool, dry place. If the battery is exposed to high temperatures during use, allow it to cool down before charging.

Periodic Inspection

Periodically inspect the battery for signs of damage or wear. If you notice any swelling, leakage, or other abnormalities, stop using the battery immediately and have it inspected by a professional.

Related Products

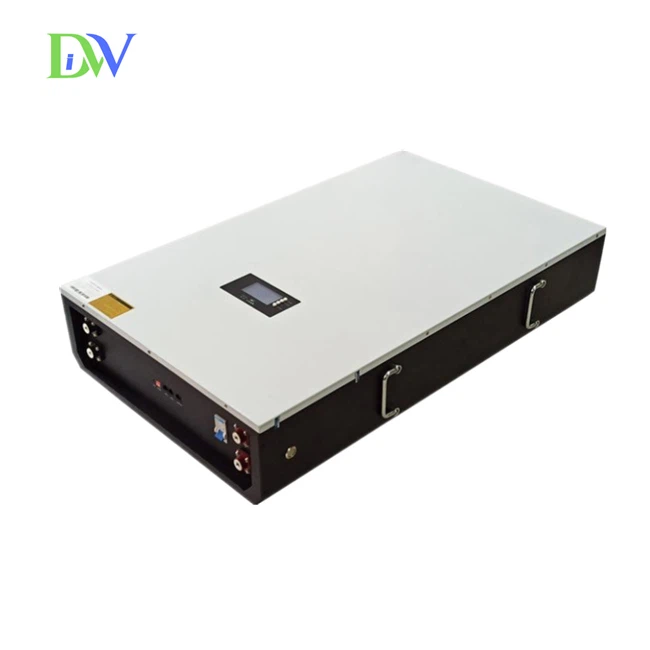

As a camping lithium battery supplier, we also offer a range of related products that can enhance your energy storage experience. Check out our Home Solar Backup Battery, which provides reliable backup power for your home during power outages. Our Solar Energy Storage Battery is designed to store solar energy efficiently, allowing you to use it when the sun isn't shining. And for server applications, we have the Server Rack LiFePO4 Battery, which offers high - performance and long - lasting energy storage.

Conclusion

Balancing the cells in a camping lithium battery is essential for ensuring its performance, lifespan, and safety. By understanding the different types of cell balancing, implementing a suitable battery management system, and maintaining proper charging and usage habits, you can keep your camping lithium battery in top condition.

If you're interested in purchasing high - quality camping lithium batteries or have any questions about cell balancing, please feel free to contact us for more information and to discuss your specific requirements. We're here to help you find the best energy storage solutions for your needs.
